| VEHICLE | HILUX 4×4 | ||
| MODEL CODE | GUN126R-BPFLHP | ||
| DIMENSIONS | |||
| Body Type | Standard | ||
| Exterior | L x W x H (mm) | 5265 x 1800 x 1795 | |
| Wheelbase | (mm) | 3085 | |
| Tread | Front / Rear (mm) | 1510 / 1510 | |
| Overhang | Front / Rear (mm) | 1000/ 1245 | |
| Min. Running Ground Clearance | (mm) | 294 | |
| Min. Turning Radius | Body (m) | 6.5 | |
| Interior | L x W x H (mm) | 932 x 1481 x 1173 | |
| Seating Capacity (persons) | 2 | ||
| Gross Vehicle Weight | Total (kg) | 2870 | |
| Curb Weight | Min. Options (kg) | 1950 | |
| Fuel Tank Capacity | Total (L) | 80 | |
| ENGINE SPECIFICATION | |||
| Engine Code | 1GD-FTV (Hi) | ||
| Intercooler | O | ||
| Displacement (cm3) | 2755 | ||
| No. of Cyls. & Arrangement | 4 cylinders, IN LINE | ||
| Bore x Stroke (mm) | 92.0 x 103.6 | ||
| Compression Ratio | 15.6 : 1 | ||
| Fuel System | COMMON-RAIL DIESEL ENGINE (D-4D) | ||
| Max. Output (kW @ rpm) | 130 @ 3400 | ||
| Max. Torque (N·m @ rpm) | 420 @ 1400 – 2600 | ||
| PERFORMANCE | |||
| Exhaust Emission Standard | EURO-II | ||
| Transmission | Code | RC61F | |
| Type | 6-Speed Manual | ||
| Transfer | System | Part-Time H2, H4, L4 | |
| Type | Switch Type | ||
| Differential Lock | O | ||
| Brake Type | Front | VENTILATED DISC | |
| Rear | LEADING-TRAILING DRUM | ||
| Brake Control Valve | EBD | ||
| Suspension Type | Front | DOUBLE WISHBONE | |
| Rear | LEAF SPRING RIGID AXLE |
||
| Stabilizer Bar | Front | O | |
| Steering Type | Type | Hydraulic Power Steering | |
| Adjustments | Tilt – Mechanical Lock | ||
| Tire & Wheel | Type | 225/70R17C Steel | |
| EXTERIOR | |||
| Headlamp | Halogen | ||
| Front Foglamp | O | ||
| Deck Guard | O | ||
| Rear Glass | Sliding | ||
| Side Body Stripe | X | ||
| Bumper | Front | O | |
| Rear | Painted with Step | ||
| Front Grille | Material Colour | ||
| Mud Guard | Front + Rear | ||
| Air Spats | Front + Rear | ||
| Doorbelt Moulding | Black | ||
| Door Handle | Black | ||
| Outer Rear View Mirror | Black | ||
| INTERIOR | |||
| Cabin Scheme | Black | ||
| Seat Material | Fabric | ||
| Door Trim | Fabric / Black | ||
| Instrument Panel | Material / Black | ||
| Door Handle | Material Colour | ||
| Sun Visor | D + P | ||
| Air Conditioner | Manual A/C | ||
| Heater | O | ||
| Side Defroster | O | ||
| Head Rest | Integrated, D + P | ||
| Seats | Type | 4:6 for 2 persons | |
| System | Manual | ||
| Slide Adjustment | Driver-Side | ||
| Recline Adjustment | Driver + Passenger | ||
| Accessory Connector | 12 V DC | O | |
| Steering | Urethane | ||
| Digital Clock | O | ||
| Economy Lamp | O | ||
| Audio | Speakers | 2 Speakers / Audio Ready | |
| SAFETY | |||
| Key Reminder | O | ||
| Engine Oil Leveling Warning | O | ||
| Light Reminder | O | ||
| Clutch-Start Safety | O | ||
| Anti-Lock Braking System | O | ||
| Seatbelt | 3 point ELRx2 + P/T + F/LÂ (New) | ||
| SRS Airbags (New) | Front | Driver + Passenger (New) | |
| O = Available, X = Not Available | |||
| *Indus Motor Company reserves the right to alter any details of specifications and equipment without notice. Vehicles shown and specifications mentioned herein may vary from models and equipment available. | |||

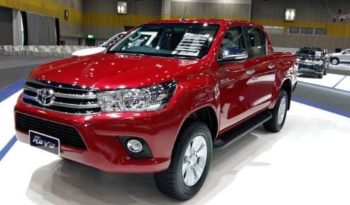

Toyota Hilux REVO
Status = Discontinued (New Facelifted Model Introduced in 2021)
Price in Pakistan in 2021:
- Toyota Hilux REVO G MT = 63,42,000 PKR
- Toyota Hilux REVO G AT = 666, 4000 PKR
- Toyota Hilux REVO V AT = 70,41,000 PKR
- Toyota Hilux 4×4 = 51,000,00 PKR
Toyota Hilux is known for its reliability since 2015 when it first made a debut worldwide and now the 2020 model of Hilux also known as Toyota Revo has come up keeping up its strong nature and providing amazing performance in both off-road and on-road driving situations. It is available in eight active trims and two imported trims. Active trims are mentioned as 4X2 single cab deckles, 4×2 single cab standard, 4×2 single cab up-spec, 4×4 single cab standard 2.8, E 2.8, Revo G 2.8, Revo G automatic 2.8, Revo V Automatic 2.8. Imported versions include invincible and invincible X. Hilux has recently faced competition from Isuzu D-Max by Gandhara Industries Limited which is also available in single and double cabin options but Indus Motors have a very extensive dealership all over the country which Ghandhara is yet to be watched even though having cheaper price rate. Toyota Hilux Revo 2020 has received a new facelift with Tacoma inspired grille on the front and redefined front bumpers with new fog light housings.
Engine and performance:
The 2020-2021 model will have the newest 2.8 liters 1GD FTV engine instead of three liters 1KD FTV engine. Different engine capacity options being offered by Hilux 2020-2021 include two liters inline petrol engine, 2.4 liters inline diesel engine, 2.5 liters inline diesel engine, 2.7 liters inline4 petrol engine, 2.8 liters inline 4 diesel engine, three liters inline 4 diesel engine, and 4 liters V6 petrol engine. We will discuss Revo G 2.8 trim in detail which is powered by a 2755 cc inline4 diesel engine that produces a maximum power of 175 bhp at 3400 rpm and 420 Nm of torque. It offers a six-speed manual and automatic transmission. It is available in both single cabin and double cabin options equipped with an all-wheel driving system letting you drive in all types of weather conditions.
Exterior design and features:
The design of the newest Hilux is inspired by design language elaborating Keen Look. The front fascia has a more muscular look with an updated front bumper and curved wheel arches. It is 5335 millimeters in length, 1815 millimeters in width, and 1815 millimeters in height. The chrome-accented grille blends with back headlights while the tough looks are more pronounced by the chunky bumpers. The G variant has more rugged looks with a hexagonal grille and glossy back sports bar along with sporty door handles, mirror caps, and tailgate trim. The bold transformation is completed by the eighteen inches Fortuner style alloy wheels. It is available in super white, attitude black, silver metallic, and graphite grey, and bronze mica exterior color options.
Interior design and features:
The interior design of Hilux is engineered for providing you maximum comfort with a seating capacity for five passengers including the driver and its off-road abilities make it the best vehicle for family picnics on hilly ranges. The cabin is given a redefined style statement with an amazing instrumental cluster displaying analog gauges and a vertical multi-infotainment screen. Infotainment is provided by 6.5 inches touch screen provided with Bluetooth connection, mobile compatibility, and USB ports. Â Thin-film transistor multi infotainment screen display is an enlarged screen as before displaying both audio system and vehicle features that have easy to use interface. Safety features consist of an anti-lock braking system, additional safety kit, SRS airbags, electronic stability control system, hill start assistance, trailer sway control system, and traction control.
 The cabin is equipped with a cooler box that stores 2 to six 600 milliliters of water bottles while cup holders make it easy for carrying those bottles. Push start button, keyless entry, power windows, power side mirrors along a child lock system will further provide you with an easier journey. It also features a climate control system along with a proper air conditioning system and the power steering is easily adjustable provided with a voice recognition system and cruise control to make your ride more happening and exciting.
Major competitors of Toyota Hilux:
Some of the major competitors of the newest Toyota Hilux 2020 include Nissan Navara, Mitsubishi Animal, Toyota Tacoma, JAC T6, and Isuzu D Max.
Price:
Toyota Hilux latest model has a price range between 51Â Pakistani lacs to 70 Pakistani lacs with 4×4 single cab deckles being the cheapest with a price of 51 lacs Pakistani rupees and Revo Automatic 2.8 being the most expensive trim having a price ranges from 63.5 – 70 lacs Pakistani rupees Depend upon the trim while the Revo G 2.8 trim being discussed has a starting price of 63.5 lacs Pakistani rupees.
